Road Stream Crossing Site S890

Boardman River Watershed, Williams Creek

Williams Rd

Crossing: Williams Road / Williams Creek

Blair Twp, Grand Traverse County

GPS Coordinates: 44.67924 , -85.63609

T26N R11W Sec 3, 4

Road Width at Culvert: 22 ft.

Road Surface: Paved

Maintenance: year around

Low Point: At Stream

Existing Drainage Control? yes

Any Failings? yes

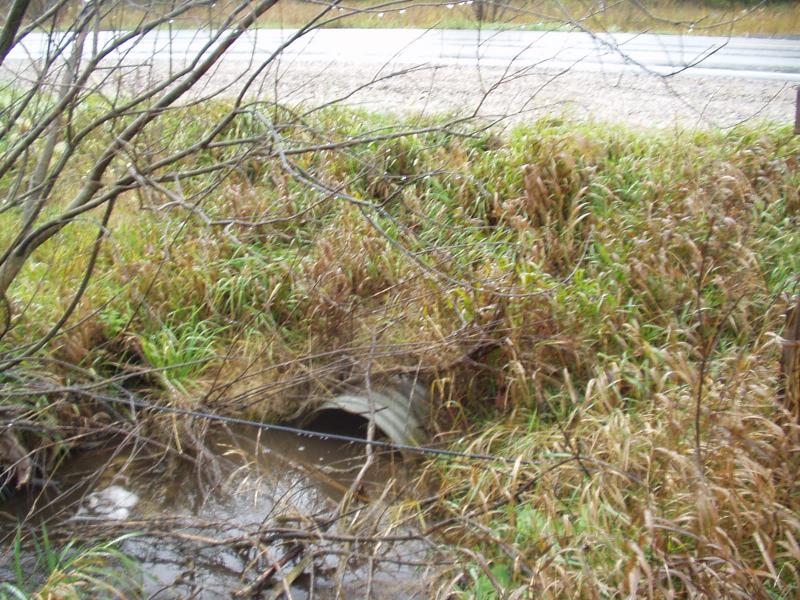

Type of Crossing: culvert(s) (single culvert)

Is this crossing constricted? yes

Are there adjacent wetlands? yes

Slope: 0%

Vegetation: heavy

Slope: 0%

Vegetation: heavy

Shape: round

Length: 45 ft.

Diameter: 1.5 ft diameter ft.

Material: galvanized

Condition :good

Flow: clear

Fill Depth: 3.5 ft.

Embankment Slope: 1.5:1 slope

Fill Depth: 3.5 ft.

Embankment Slope: 1.5:1 slope

Stream Width: 3 ft.

Stream Depth: 4 in.

Stream Current: moderate

Stream Substrate: sand,gravel

Stream Width: 3 ft.

Stream Depth: 4 in.

Stream Current: moderate

Stream Substrate: sand,gravel

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? no

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? yes

Is there pooling at the outlet? yes

Is there sand over the crossing? no



Extent of Erosion: moderate

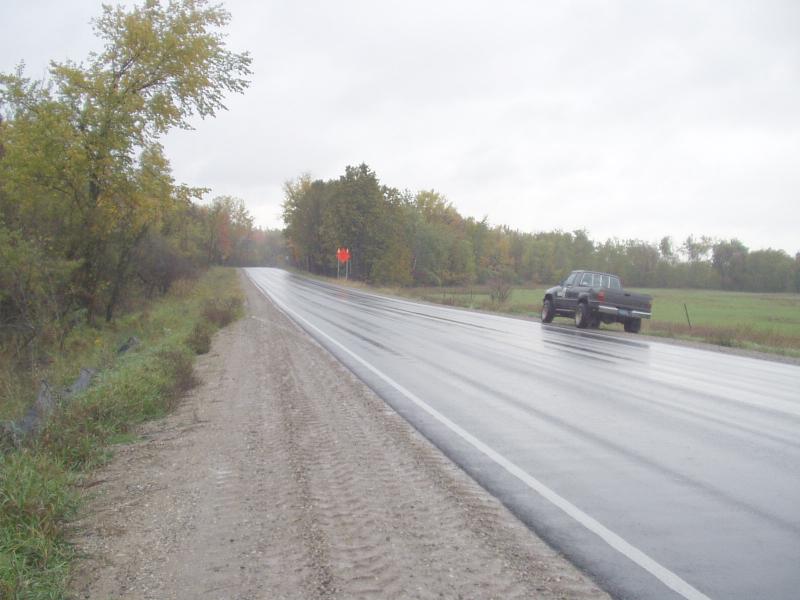

Cause of Erosion: Road runoff, soft shoulder

Action Recommended? yes

Add pavement? no

Add paved raised edge? yes

Increase fill? no

Replace culvert(s)? no

Extend culvert(s)? no

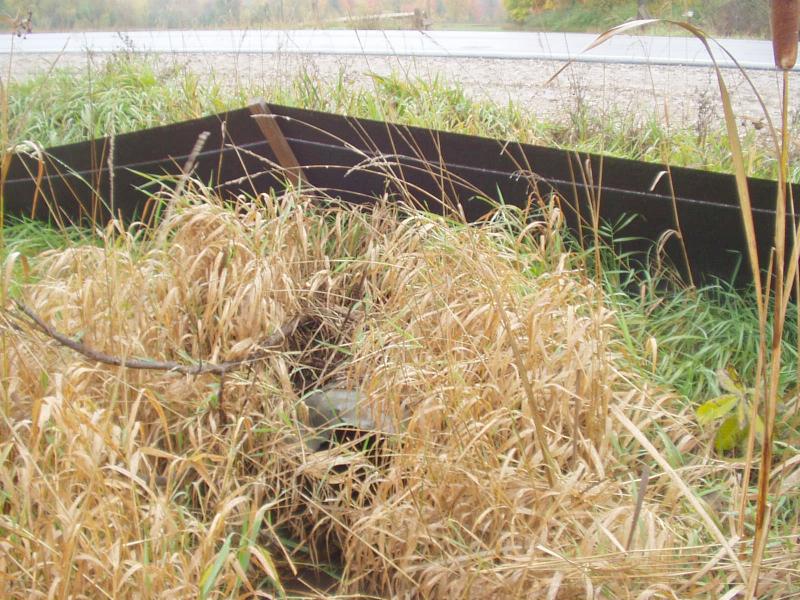

Other Treatments: Maintain silt fencing

Comments: Silt fencng is holding back a lot of sand and gravel. Some has begun to fill oveer the fencing. Lots of potential for future sediment inputs, but should stabilize as shoulder settles.
