Road Stream Crossing Site S431
Boardman River Watershed, Jackson Creek
Voice Rd
Crossing: Voice Road / Jackson Creek
Paradise Twp,
Grand Traverse County
Information collected by:
GPS Coordinates: 44.60614
, -85.48612
T26N
R10W
Sec 35
Adjacent Land Owned by Private
Severity: None

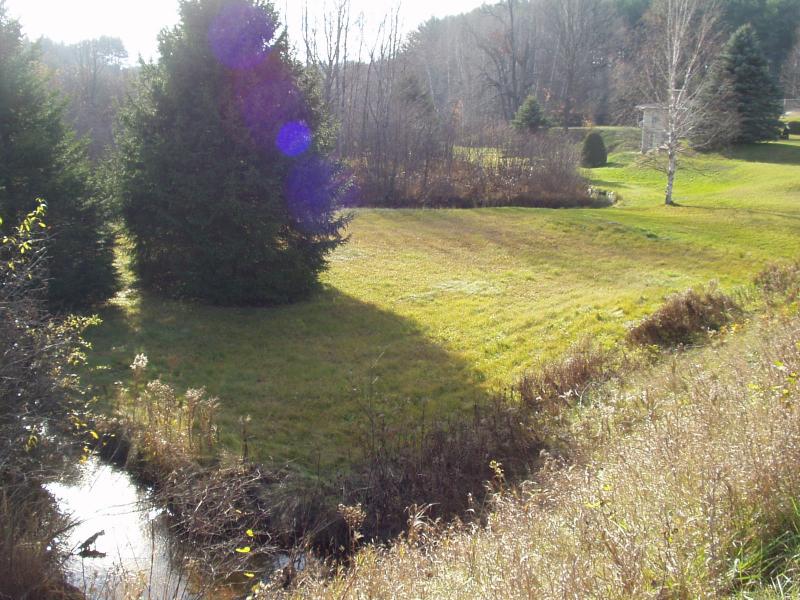

Site Location

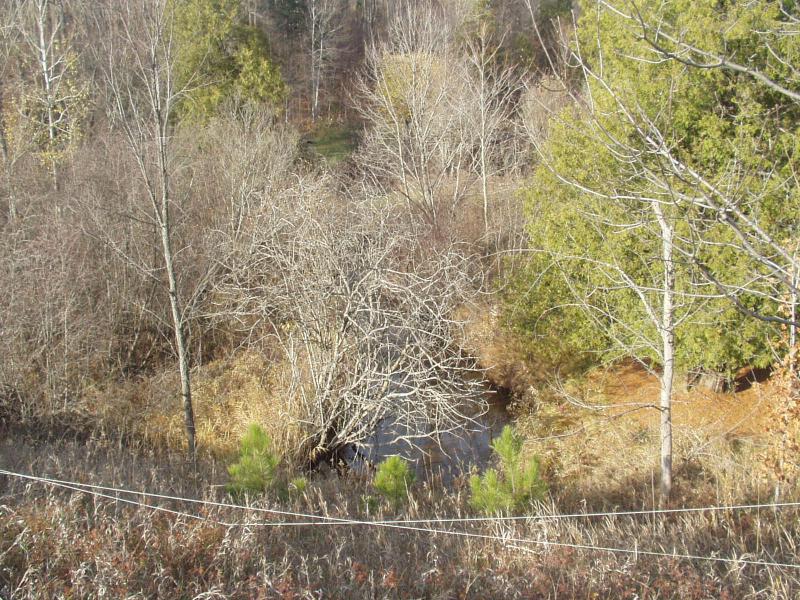

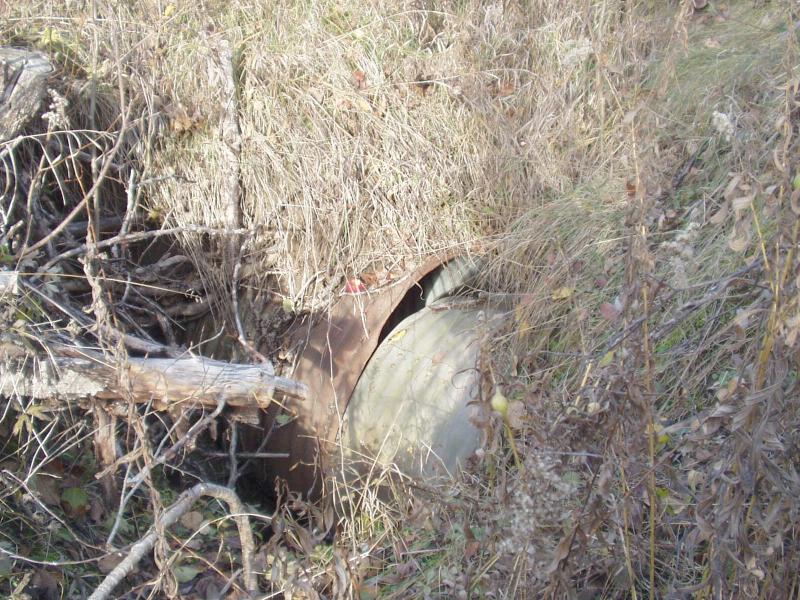

Inlet

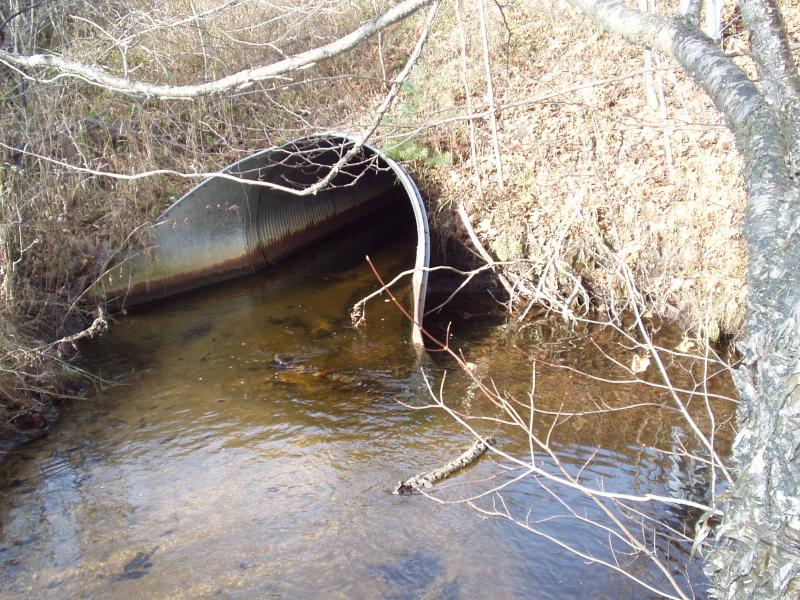

Outlet
Road Approach - Left
Road Approach - Right
Crossing Information
Road Width at Culvert: 22 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? yes
Are there adjacent wetlands? yes
Approaches
Left Approach
Slope: 1-5%
Vegetation: heavy
Right Approach
Slope: 1-5%
Vegetation: heavy
Culvert Information
Shape: round
Diameter: 6 ft diameter ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 15 ft.
Embankment Slope: 1.5:1 slope
Downstream
Fill Depth: 15 ft.
Embankment Slope: 1.5:1 slope
Stream Information
Upstream
Stream Width: 10 ft.
Stream Depth: 12 in.
Stream Current: moderate
Stream Substrate: sand
Downstream
Stream Width: 10 ft.
Stream Depth: 12 in.
Stream Current: moderate
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: none
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Increase fill? no
Replace culvert(s)? no
Extend culvert(s)? no
Comments: Culvert is undersized, but crossing is stable.
Severity:None
This page last updated on 2/9/2022.
