Stream Bank Erosion Site BRD-S313
Total Severity: Moderate
Total Points: 31
Information collected by:
Boardman River Watershed,
Kids Creek Tributary D
Garfield Twp,
Grand Traverse County
GPS Coordinates: 44.73113813
, -85.64735523
T27N
R11W
Sec 16
Owned by Private
Site Access:Yes
Bank Details
Which Bank? Left

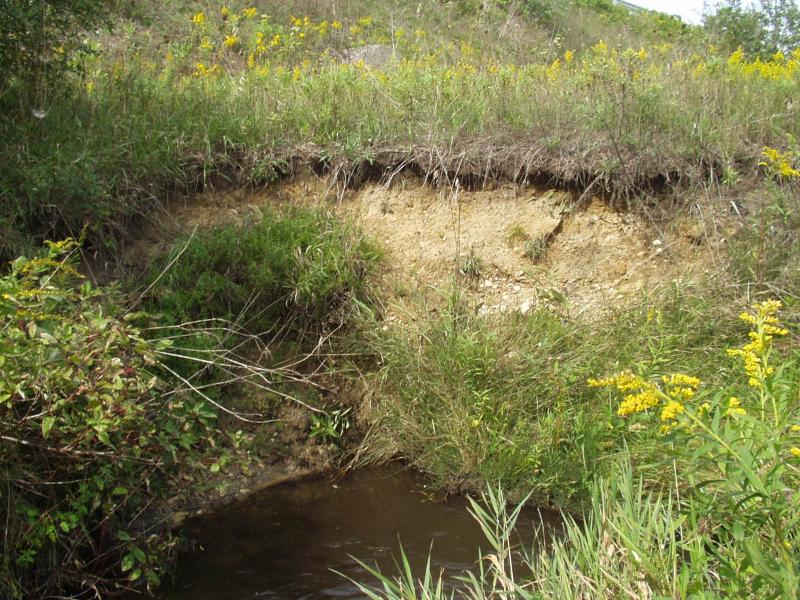

Condition:Both toe and upper bank eroding
Erosion Trend:Increasing
Percent Veg. Cover: 10-50%
Bank Conditions
Stream Width:6 ft.
Stream Depth:6 in.
Stream Current:Moderate
Eroded Bank Length:8 ft.
Eroded Bank Height:6 ft.
Slope of Eroded Bank:1:1
Cause(s) of Erosion
-Bend in river
-Foot traffic
Recommended Treatment(s)
-Bank revegetation
-Rock riprap
-Cover structure
General Information
Soil Texture: sand / gravel
Outer wall of stormwater retention pond at Horizon Outlet Mall. Should be stabilized to prevent further erosion and potential breaching of the wall.
Outer wall of stormwater retention pond at Horizon Outlet Mall. Should be stabilized to prevent further erosion and potential breaching of the wall.
Total Points
31
