Road Stream Crossing Site EUP_6337461999
Pine River Watershed, Biscuit Creek
S Dryburg Rd
Chippewa County
Information collected by:
Superior Watershed Partnership
Site Location
GPS Coordinates: 46.226709424,-84.6771637529999
T 044NN R 003W Sec 09
Fish Passability: Barrier
Structure is NOT Perched
Total Erosion: 5.31 tons/year
Overall Score: 33
Severity: Severe
Date Inventoried: 4/13/2021

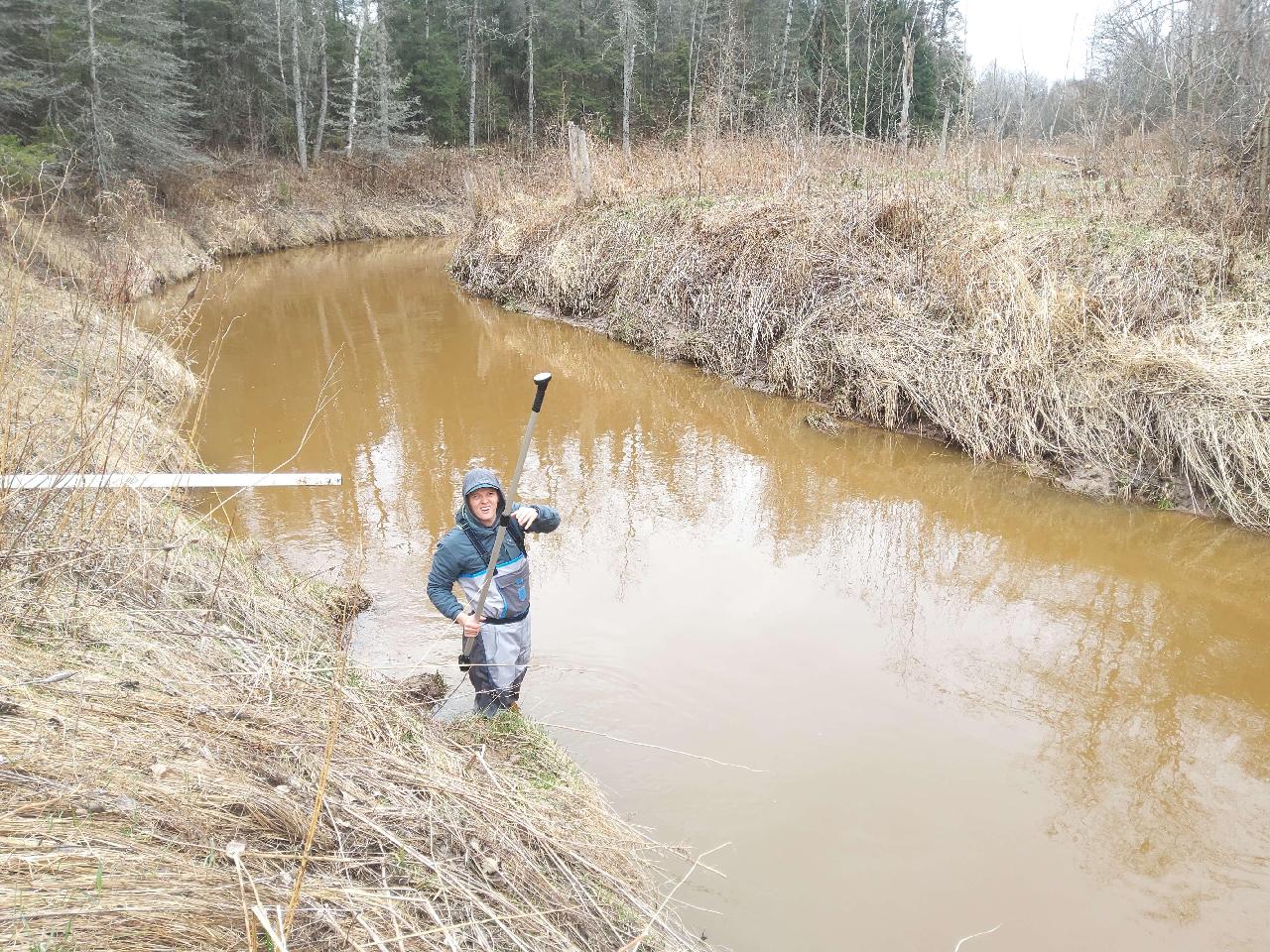

Representative Reach
Site Sketch
Crossing Information*
Type of Crossing: Culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Moderate deterioration from corrosion or abrasion (small rust flakes or indication that rust is slightly deeper than the surface level) or cracking or spalling or chipping (few minor cracks or localized chipping in the concrete). OR minor shape changes (described above).
Structure Interior: Smooth
Is Structure Rusted through? No
Dimensions of Structure: Length 62 ft. Width 10.7 ft. Height 10.4 ft.
Percentage Plugged: None or 0%
Percentage Crushed: None or 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 5.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.1 ft./sec.
Structure Outlet
Water Depth: 5.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.1 ft./sec.
*Water Velocities were measured at the surface (via Float Test).
Additional Comments
Updated by Huron Pines
Stream Information
Stream Flow: < Bankfull – The stream channel is more than half filled with water, but is not full.
Stream Flow Type: Perennial (if flowing during the time of assessment.)
Is Scour Pool Present? Yes
Scour Pool: Length 50 ft., Width 45 ft., Depth 6 ft.
Is Upstream Ponding Present? No
Riffle Information
Water Depth: 4 ft.
Bankfull Width: 26 ft.
Wetted Width: 16 ft.
Water Velocity: 1 ft./sec. (measured via Flow Meter)
Dominant Substrate: Clay – very fine particles that stick together
Road Information
Road Surface: Gravel
Owner: County
Road Condition: New Pavement or Well Graded, Same condition as initial placement.
Road Core Integrity: Good (no symptoms of lack of integrity)
Road Width at Culvert: 15.4 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 8 ft.
Slope: Steep, 1:1, 45°, or 100%
Downstream
Fill Depth: 8 ft.
Slope: Steep, 1:1, 45°, or 100%
Approaches
Left Approach
Length: 395 ft.
Slope: 6-10%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 2.55 tons/year
Right Approach
Length: 420 ft.
Slope: 6-10%
Vegetation: Heavy, Ditch is fully vegetated or rip-rapped with no signs of erosion.
Erosion Estimate: 2.76 tons/year
Erosion Information
Estimate of Total Erosion at Crossing: 5.31 tons/year
Summary Information
Fish Passability: Barrier
Is a future visit to this site recommended? Yes, For erosion.
Were any non-native species observerd at this site? No
Site Comments: Recorded at record rain levels (superior watershed)
*These data are maintained in the Michigan DNR Road Stream Crossing Inventory.
