Road Stream Crossing Site Mu-Dewey

Muskegon River Watershed, Big Creek
Dewey Ave
Roscommon County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.4973817,-84.7782186
T 024N R 004 Sec 03
Fish Passability: Barrier
Structure is NOT Perched
Total Erosion: 0.01 tons/year
Overall Score: 6
Severity: Minor
Date Inventoried: 4/29/2022
Road Approach - Left
Road Approach - Left
Road Approach - Right
Road Approach - Right
Inlet
Inlet
Upstream Conditions
Upstream Conditions

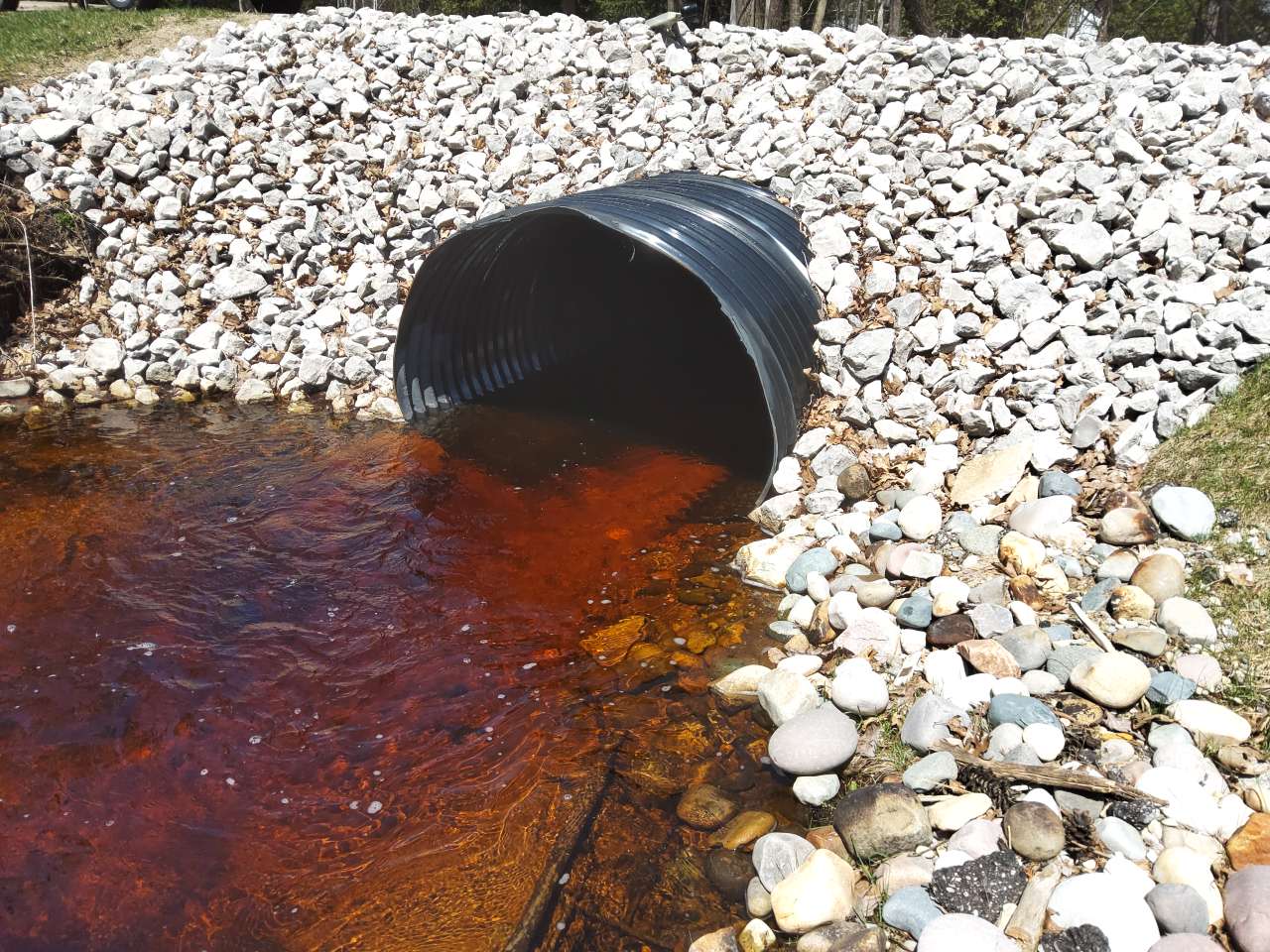

Outlet
Outlet

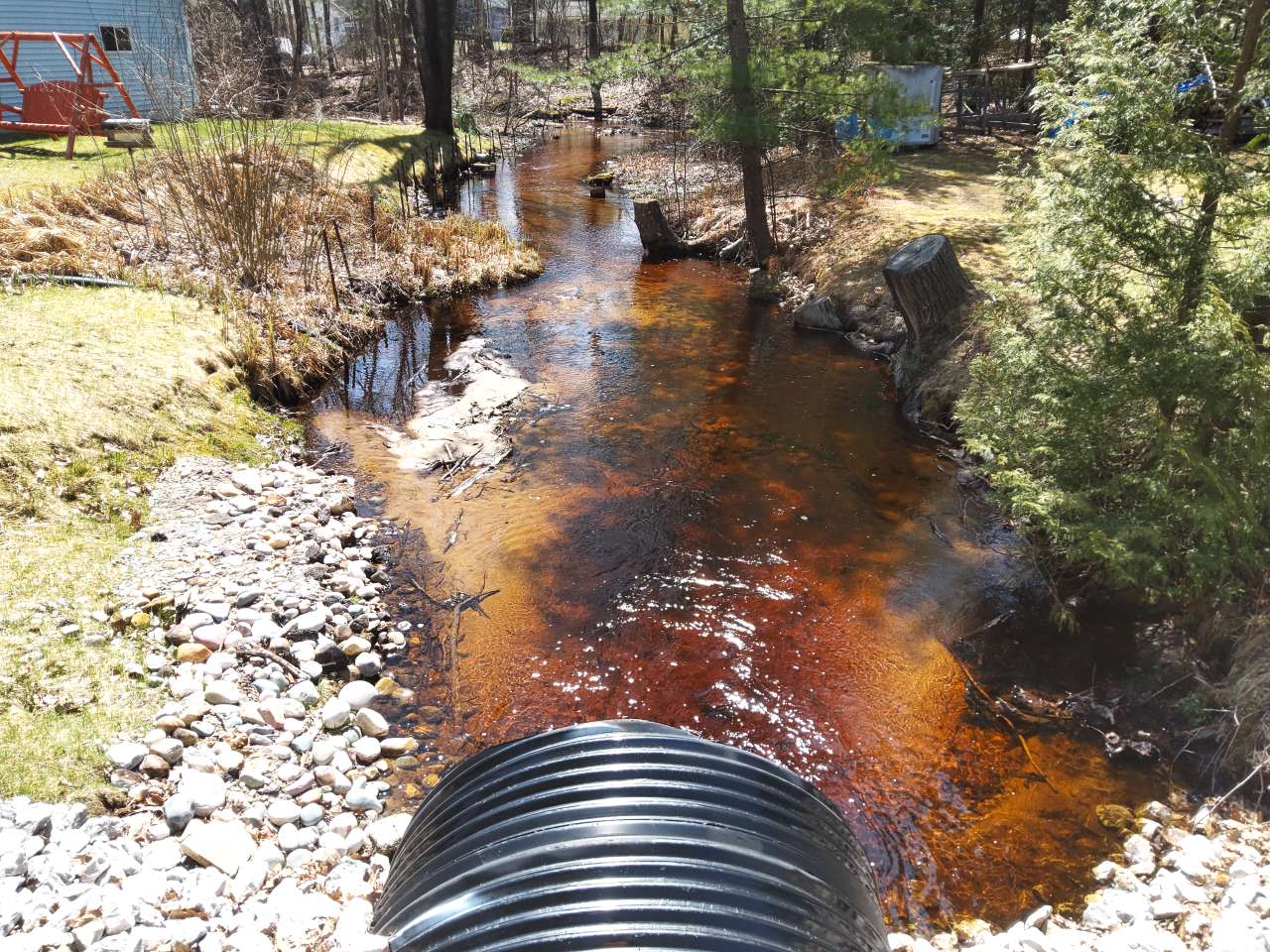

Downstream Conditions
Downstream Conditions
Representative Reach
Representative Reach

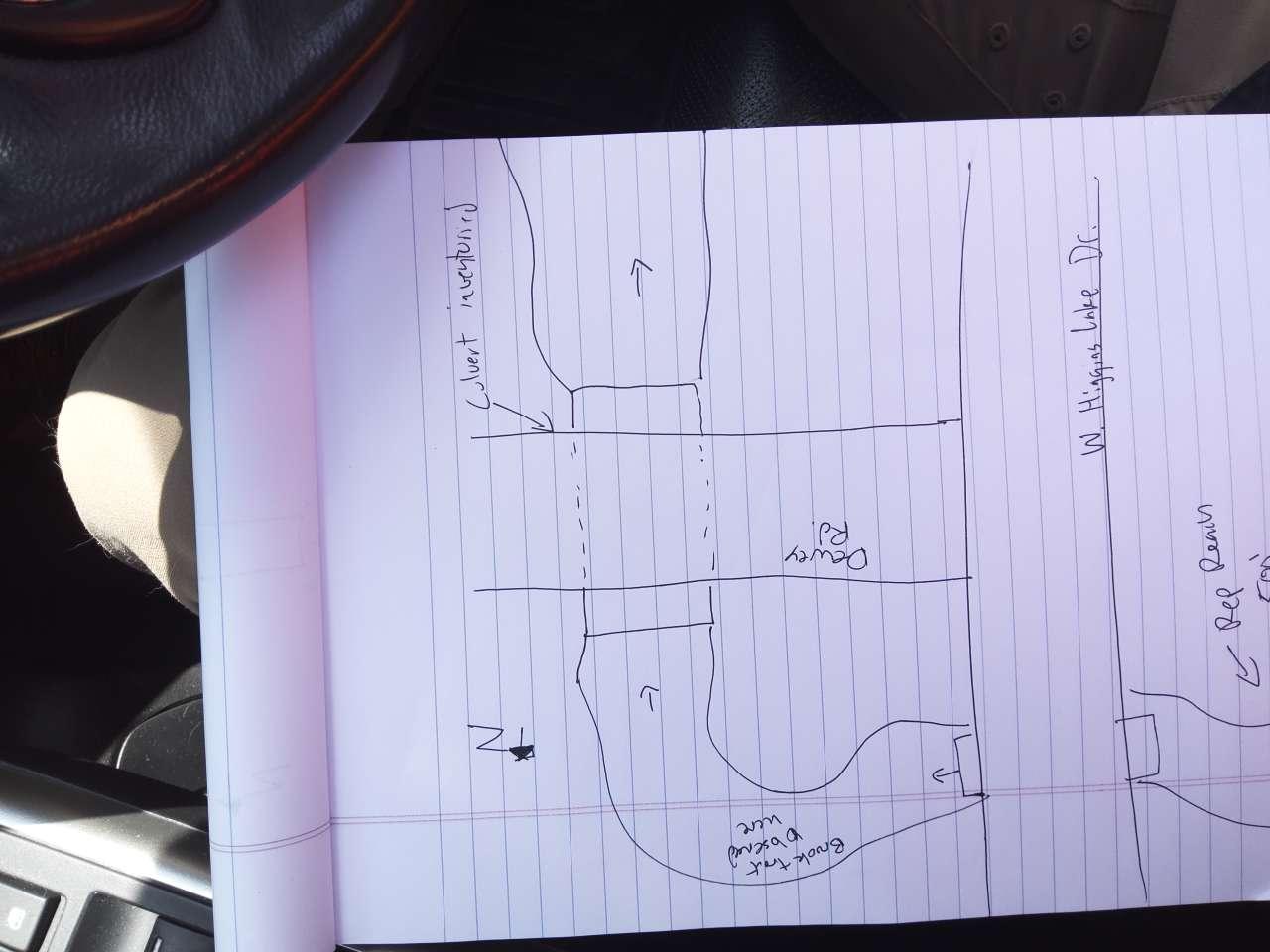

Site Sketch
Site Sketch
Crossing Information*
Type of Crossing: Culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: No deficiencies. New structure or nearly new condition.
Structure Interior: Corrugated
Is Structure Rusted through? No
Dimensions of Structure: Length 40 ft. Width 5.5 ft. Height 4.5 ft.
Percentage Plugged: None or 0%
Percentage Crushed: None or 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 3.6 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.5 ft. below the surface (via Flow Meter).
Stream Information
Stream Flow: < Bankfull – The stream channel is more than half filled with water, but is not full.
Stream Flow Type: Perennial (if flowing during the time of assessment.)
Is Scour Pool Present? No
Is Upstream Ponding Present? No
Riffle Information
Water Depth: 0.8 ft.
Bankfull Width: 11 ft.
Wetted Width: 10.7 ft.
Water Velocity: 1.3 ft./sec. (measured via Flow Meter)
Dominant Substrate: Sand – particles are smaller than a pinhead and feel gritty between fingers
Road Information
Road Surface: Paved
Owner: County
Road Condition: New Pavement or Well Graded, Same condition as initial placement.
Road Core Integrity: Good (no symptoms of lack of integrity)
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.7 ft.
Slope: Moderate, 2:1, 22.5°, or 41%
Downstream
Fill Depth: 2 ft.
Slope: Moderate, 2:1, 22.5°, or 41%
Approaches
Left Approach
Length: 375 ft.
Slope: < 1%
Vegetation: Partial, Ditch has some vegetation and some bare, eroding places.
Erosion Estimate: 0.01 tons/year
Right Approach
Length: 100 ft.
Slope: < 1%
Vegetation: None, Ditch has been recently graded and is bare of vegetation.
Erosion Information
Estimate of Total Erosion at Crossing: 0.01 tons/year
Summary Information
Fish Passability: Barrier
Is a future visit to this site recommended? No
Were any non-native species observerd at this site? No
Site Comments: Culvert replaced in 2021. Brook trout and suckers observed upstream or culvert.
*These data are maintained in the Michigan DNR Road Stream Crossing Inventory.
